Two Component Dielectric Insulation Silicone Gel SI8715

∎Product Description

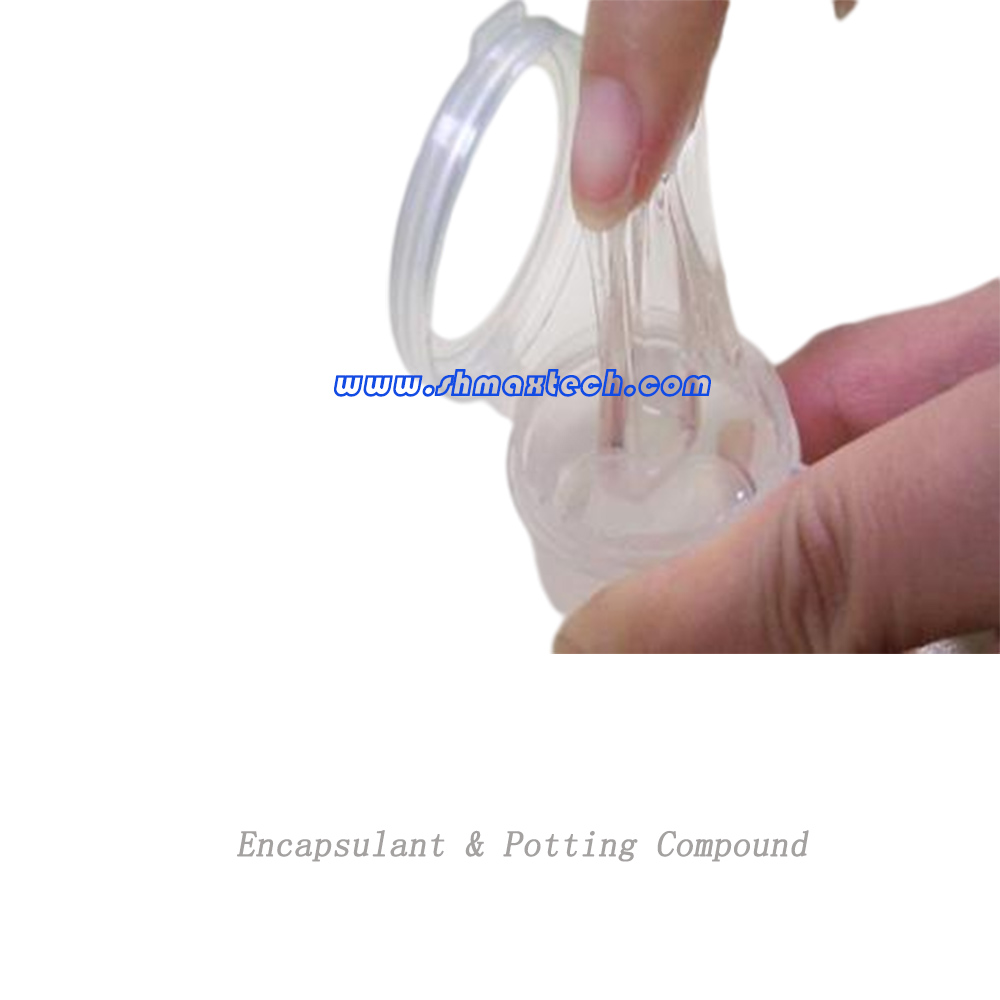

SI8715 is two-component transparent self-healing silicone gel, after cured it will become quite elastic material with buffer and self-recovery. Used to isolate moisture and other noxious pollutant from contacting the circuit board, also used as dielectric of high voltage. The other usage is stress relief for protecting circuit and components from high temperature and mechanical stress.

∎Typical Applications

• • Used for encapsulation of various modules, semi-conductor, IGBT, automotive ECU module, IC chip, weighing sensor, waterproof connector.

Note：All above data were tested under standardized condition, or tested by further experiments.

∎Technical Data Table

Note：All above data were tested under standardized condition, or tested by further experiments.

∎Key Features

1. 1. 1:1 addition type, good adhesive strength and self-healing
   2. High elongation, excellent flexibility for mechanical stress relieving
   3. Low oil penetration after cured, good anti-poisoningproperty
   4. Good dielectric in high temperature for high voltage protection
   5. Excellent aging resistance and weatherability
   6. Excellent waterproof, corrosion prevention, moisture proof and chemical media resistance

∎Packing Specification

• • Part A—10 KG/Bucket
  • Part B—10 KG/ Bucket.

∎Transport &Storage

• When stored at or below 35°C in the original unopened containers, this product has a usable life of 12 months from the date of production.

• Sampling test is necessary for products which exceed shelf life before taking use. During storage may have little settlement stratification, stirring evenly when use, does not affect performance.

It’s non-dangerous goods, can be transported as normal chemicals, CAUTION leakage during transport.

.∎Directions for Use

1. 1. 1. Mix Part A and Part B by 1:1 mass ratio, after evenly mixed, pouring directly into the components or modules as per requirements.
      2. Still the potted component to let out the bubbles. It can be heat cured, about 30mins in 80°C. It needs about 4-5hours cured under room temperature. Require 24 hours to achieve surface without obvious oil layer.
      • Vacuum defoaming can improve the performance of cured product.
      • Seal the remaining products tightly after use.
      • Low temperature will slow the curing speed; heat curing is recommended.
      • It’s hard for SI8715 to cure if contact with sulfur, amine or Sn

∎Attention of operation

• Keep away from Children

• Avoid contact with eyes and skin. If contact with your skin, scrub first with soap wateror alcohol, then rinse with water. If contact with your eyes, rinse with plenty of water, andseek medical treatment immediately.

• It is forbidden to build on the surface of the wet substrate.

∎Safety Operation Data

MSDS isn’t included here. Please read TDS, MSDS and label carefully before operation. You can get MSDS from MAXTECH or other distributors, or mail to service center maxtech@shmaxtech.com

∎Warranty and Liability

All product properties and application details based on information believe to be reliable and accurate. But you still need to test its property and safety before application. The advice we supply don’t apply in any circumstances. MAXTECH don’t make assurance of any other applications outside the specification until MAXTECH supply a special written guarantee. MAXTECH is only responsible to replace or refund if this product is defective within the warranty period stated above. MAXTECH makes it clear that will not be liable of any accidents.

∎FAQ

• Q : How long can I get a quote?

  A: The quotation can be provided no longer than 24hours on condition that we know all detailed requirement.

  Q: Do you accept private Label?

  A: Yes.  ODM & OEM are welcome

  Q:Can We get a samle before order?

  A: Of course. Generally, we provide 1-5 pieces free samples for quality testing and the courier fee be born by customers. Thanks for your understanding.

  Q:Do you have MOQ ?

  A: Yes, Generally ,MOQ is1000-2000kg
  Q: How long will finished my order?

  A: It’s depend on your order quantity. Generally, we just need around 10 days to produce 5000kg after receive your
  payment.
  Q: How to find the suitable sealant ?

  A: Please let me know your application purpose,substrate, application method and all your requirements. We would like give you a recommendation.
